02 Pt Cruiser Rear Suspension Diagram


click to enlarge

click photo for more pictures

LOWER CONTROL ARM

Replacement lower control (wishbone) arm for the PT Cruiser complete with ball joint and bushes. Polyurethane bushes are available here which are much longer lasting than the standard fitted rubber ones. Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010. For lower control arms fixing bolts click here

Code: LCA1 Left side £57.50 (includes VAT)

Code: LCA2 Right side £57.50 (includes VAT)

left or right


click to enlarge

click photo to enlarge

TRACK / TIE ROD END

Well made replacement track/tie rod ends for the PT Cruiser with a big saving on the OEM price. Fits either side for all petrol and diesel PT's . Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: TRA1 £24.40 each (includes VAT)


click to enlarge

click photo to enlarge

STEERING RACK TIE ROD ARM

Replacement steering rack tie rod arm. Fits either side for all petrol and diesel PT Cruisers.
Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: TRA2 £28.55 each (includes VAT)


click to enlarge

click photo to enlarge

BALL JOINT - FRONT CONTROL ARM

Top quality replacement ball joint for the control arm (often called the wishbone). Sold individually, will fit both sides. Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: BJ1 £28.95 each (includes VAT)


click to enlarge image

click photo for more pictures

REAR CENTRE WATTS BARS LINK (Bell Crank)

The PT's rear suspension is reliable but should a fault occur - clunking sounds from the rear of the car for example, the Watts centre bars link, or bell crank as it is called in the USA, should be checked. The centre bush in this non-servicable part can wear in time - accelerated by bumpy roads, speed bumps etc. This centre bar link connects together the two Watts link bars that keep the rear axle in its correct position. Click here for the fixing bolt.Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: BAR1 £29.80 Fits 2000-2005 (includes VAT)

Code: BAR2 £27.60 Fits 2006-2010 (includes VAT)


click to enlarge

click photo for more pictures

WATTS LINK BARS

There are two Watts link bars on the rear suspension, an upper and a lower one. Each is connected to the central track bar link (bell crank) at the ball-joint end and to the chassis at the other. Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: WL1 Upper link bar £39.85 (includes VAT)

Code: WL2 Lower link bar £39.95 (includes VAT)


click to enlarge

click photo for more pictures

REAR ANTI-ROLL BAR LINK

Link for the rear anti-roll bar (also known as the sway or stabilizer bar). There is a link on each side of the PT connecting the anti-roll bar to the chassis. Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: BAR5 £21.55 each (includes VAT)


click to enlarge image

click photo for more pictures

LOWER TORQUE-STRUT (ENGINE MOUNT)


Replacement engine torque-strut which is fitted to the lower right hand side. There are three types, one for 2.0 & 2.4 litre, one for the 2.4 Turbo petrol PT Cruisers, and another for diesel 2.2 litre CRD models. The diesel strut has been re-designed by Chrysler to better control the higher torque of the diesel engine. We supply a bolt adaptor sleeve (exclusive to the PT Company) with the strut enabling it to be used on earlier diesel models too.

Code: EM1 Fits 2.0 & 2.4 litre 2000-2010 £49.95 (includes VAT)

Code: EM8 Fits 2.4 GT Turbo 2000-2010 £51.60 (includes VAT)

Code: EM5 Fits 2.2 CRD diesel 2002-2004 £59.85 (includes VAT)

Code: EM6 Fits 2.2 CRD diesel 2005-2010 £55.85 (includes VAT)

Code: EM7 Fits 1.6 litre 117.50 (includes VAT)



click to enlarge image

click photo for more pictures

UPPER TORQUE-STRUT (ENGINE MOUNT)

Replacement upper engine torque-strut which is fitted to the top right-hand side of petrol engine PT Cruisers.
Fits 1.6, 2.0 & 2.4, 2.4 Turbo petrol and 2.2 CRD PT Cruisers 2000-2010.

Code: EM2 £33.95 (includes VAT)


click to enlarge

click photo for more pictures

ENGINE MOUNT

Replacement engine mount that fits on the right-hand side of the engine.
Fits 1.6, 2.0 & 2.4, 2.4 Turbo petrol and 2.2 CRD PT Cruisers 2000-2010.

Code: EM3 £43.95 (includes VAT)


click to enlarge
click photo to enlarge

TRANSMISSION / ENGINE MOUNT

This mount fits on to the top of the gearbox where it connects to the engine.
Fits all 1.6, 2.0, 2.4 & 2.2 CRD automatic and manual PT Cruisers 2000-2010.

Code: EM4 Fits 1.6, 2.0 & 2.4 litre 2000-2010 £54.50 (includes VAT)

Code EM11 Fits 2.2 CRD and 2.4 Turbo 2002-2010 £59.75 (includes VAT)


click to enlarge

click photo for more information

ENGINE MOUNT BOLTS

Replacement bolts for the lower torque strut EM1, EM5, EM6, EM7 & EM8, upper torque strut EM2 and the EM3 engine mount on the PT Cruiser.

Code: BOL8 Fits Front (large end) £9.60 each (includes VAT)
Fits 1.6, 2.0 & 2.4 litre 2000-2010
Fits 2.2 CRD 2000-2004

Code: BOL19 Fits Front (large end)
Fits 2.2 CRD 2005-2010 only. £18.00 each (includes VAT)

Code: BOL9 Fits Rear (small end) 1.6, 2.0 & 2.4 litre & 2.2 CRD 2000-2010 £8.65 each (includes VAT)


Bolts for Upper Torque Strut EM2
Code: BOL15 Fits small end 1.6, 2.0 & 2.4 litre 2000-2010 & 2.2 CRD 2000- 2004 £5.75 each (includes VAT) DISCONTINUED

Code: BOL16 Fits Bracket 1.6, 2.0 & 2.4 litre & 2.2 CRD 2000-2010 £4.60 each (includes VAT) DISCONTINUED


Bolt for Engine Mount EM3
Code: BOL10 Fits Centre hole 1.6, 2.0, 2.4 & 2.2 CRD 2000-2010 £10.50 each (includes VAT)


click to enlage

click photo to enlarge

REAR CENTRE WATTS BAR LINK (BELL CRANK) BOLT

Bolt for fixing the rear track bar link (bell crank) to the chassis. Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: BOL13 2000-2005 £17.25 (includes VAT)

Code: BOL14 2006-2010 £18.90 (includes VAT)


click to enlarge
click photo for more pictures

LOWER CONTROL ARM BOLTS

Replacement bolts for the lower control arms (wishbones). Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: BOL6 FRONT Bolt £18.50 each (includes VAT)

Code: BOL7 REAR Bolt £20.60 each (includes VAT)


click to enlarge image

click photo for more pictures

FRONT WHEEL BEARING

Timken-NSK replacement front wheel bearing for the PT Cruiser. Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010. Fits either side.

Code: WB4 fits 2000 - late 2001 PT Cruisers (33mm deep)  £46.70 each (includes VAT)

Code: WB5 fits late 2001-2010 petrol and diesel PT Cruisers (39mm deep)  £45.70 each (includes VAT)


click to enlarge
click photo to enlarge

FRONT HUB

Replacement front hub for the PT Cruiser. (Does NOT include the wheel bearing). Fits all PT Cruisers, 1.6, 2.0, 2.4 and 2.2 CRD.

Code: HUB1 £69.00 Fits 2000-2001 (includes VAT)

Code: HUB2 £66.50 Fits 2002-2010 (includes VAT)


click to enlarge image

click photo for more pictures

REAR HUB BEARING ASSEMBLY

Replacement rear hub bearing complete with hub assembly for the PT Cruiser - fits either side. (Bearing and hub not available separately). There are two types: 2000 & 2001 models have a 'raised cogs' ABS speed ring. January 2002 onwards models have an ABS speed ring without cogs. Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: HUB3 fits 2000-2001 £89.50 each (includes VAT)

Code: HUB4 fits 2002-2010 petrol and diesel PT Cruisers £88.50 each (includes VAT)


click to enlarge
click photo for more pictures

WHEEL STUDS

Replacement wheel studs for the PT Cruiser. Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: WS3 Fits Front wheels £2.80 each (includes VAT)

Code: WS4 Fits Rear wheels £3.75 each (includes VAT)


Wheel nuts
click photo to enlarge

CHROME WHEEL NUT FOR ALLOY WHEELS

Replacement chrome-plated wheel nut for the PT Cruiser. Fits all PT Cruisers with alloy wheels 2000-2010.

Code: WN1 £3.50 each or set of 5 for £15.00 (includes VAT)


click to enlarge
click photo to enlarge

WHEEL NUTS FOR STEEL WHEELS

Replacement wheel nuts for 15" steel wheels only - as fitted to Classic model PT Cruisers. Fits all PT Cruisers with steel wheels 2000-2010.

Code: WN2 £3.50 each or set of five for £15.00 (includes VAT)


click to enlarge

click photo to enlarge

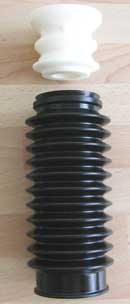

FRONT STRUT DUST BOOT AND STOP

Dust boot and bump stop for the front suspension struts. Fits either side for all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: SHF2 £29.55 each (includes VAT)


click to enlarge
click photo to enlarge

FRONT STRUT TOP MOUNT SUSPENSION BEARING

Often overlooked, the top mount bearing for the suspension strut can wear, upsetting the suspension geometry, causing roughness in steering, knocking etc. Recommended for professional fitting only as special tools required. Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: SM1 £49.95 each (includes VAT)


click to enlarge image

click photo to enlarge

FRONT STRUTS / SHOCK ABSORBER

Top quality front strut. Recommended for professional fitting only as special tools required. Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: SHF £115.60 each (includes VAT)


Rear shock absorber

click photo to enlarge

REAR SHOCK ABSORBERS

Top quality KYB Excel-G replacement rear shock absorber for the PT Cruiser. Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: SHR1 £58.50 each (includes VAT)


click to enlarge

click photo to enlarge

SPRINGS FOR FRONT AND REAR SUSPENSION

These replacement OE spec. coil springs will restore handling and ensure that ride height and body sway are returned to original standard specifications.
Fits 1.6, 2.0, 2.4 and 2.2 CRD 2000-2010.
For rear springs pad set click here.

Code: SPR1 Front Springs fits 1.6, 2.0 & 2.4 litre. £49.00 each (includes VAT)

Code: SPR8 Front Springs fits 2.2 CRD. £48.00 each (includes VAT)

Code: SPR2 Rear Springs fits 2.0, 2.4 & 2.2 CRD. £39.00 each (includes VAT)


click to enlarge

click photo for more pictures

REAR SUSPENSION BRACKETS

Replacement rear suspension brackets. Very occasionally one of these mounting brackets on the rear suspension may corrode to a point when it needs to be replaced. Click the photo for more pictures and information.Fits all 1.6, 2.0, 2.4 & 2.2 CRD PT Cruisers 2000-2010.

Code: BR1 Right upper spring mount bracket £106.80 (includes VAT)

Code: BR2 Left upper spring mount bracket £118.90 (includes VAT) OUT OF STOCK

Code: BR3 Right upper shock absorber mount bracket £104.50 (includes VAT)

Code: BR4 Left upper shock absorber mount bracket £179.95 (includes VAT)

Code: BR5 Trailing arm bracket (fits either side) £70.00 (includes VAT) OUT OF STOCK

left or right


FUEL TANK STRAPS

Replacement fuel tank straps for the PT Cruiser. Fits all models 1.6, 2.2CRD, 2.0, 2.4 & 2.4 turbo 2000-2010. Set of two.

Code: FTS £39.50 (includes VAT)


click to enlarge

click photo to enlarge

ABS RELUCTOR RING

ABS Reluctor Ring to fit to the front axle on the PT Cruiser. A fault in the ABS system will cause the dashboard ABS warning light to switch on or to flash. This can be caused by an ABS ring that has failed - normally due to excessive corrosion.
The ABS rings we supply have a tough anti-corrosion plating to give them a far longer life than standard reluctor rings. Fitting guide.
Fits either side.
For 2.2 CRD PT Cruisers, please check the inside diameter of the ring as early models have an inside diameter of 80mm

For ABS sensors click here

Code ABSR1: (80mm size) Fits 1.6, 2.0, 2.4 litre 2000-2010 and 2.2 CRD 2002 £31.75 each (includes VAT)

Code ABSR2: (84mm size) Fits 2.2 CRD and 2.4 Turbo 2003-2010 £25.50 each (includes VAT)


click to enlarge

click photo for more pictures

CV DRIVE / HALF SHAFTS

Replacement drive / half shafts for 1.6, 2.0 and 2.4 litre PT Cruisers. The need to change a driveshaft is often due to a damaged ABS ring rather than a worn CV joint. The CV joints are not available separately. Fits 1.6L, 2.0L, 2.4 litre manual & automatic PT Cruisers 2000-2010. (Does NOT fit 2.2 CRD Diesel or 2.4 litre Turbo models).

Code: CV3 Left side £187.00 (includes VAT)

Code: CV4 Right side £189.00 (includes VAT)

left or right


click to enlarge image

click photo to enlarge

CV JOINT BOOT

Replacement CV boot - supplied with fixing clips and moly grease. Fits 1.6L, 2.0L, 2.4, 2.4 GT Turbo and 2.2 CRD manual & automatic PT Cruisers 2000-2010.

Code: CV1 INNER CV Boot, fits either side £24.95 each (includes VAT)

Code: CV5 OUTER CV Boot, fits either side £20.35 each (includes VAT)

left or right


click to enlarge

click photo for more information

EXHAUST RUBBER MOUNTS

Exhaust rubber mounts/hangers for the PT Cruiser. There are three of these mounts, one on the exhaust pipe and two on the silencer back box.
Fits all PT Cruisers 2000-2010

Code: EX4 £9.95 each or 3 for £27.90 (includes VAT)
